NSI1300D25-DSWWAR is an galvanic isolated sampling operational amplifier whose output and output are based on NOVOSENSE capacitance isolation technology. This series of products are designed with linear differential input signal of ± 250mV (full scale ± 320mV). The fail-safe function includes input common mode overvoltage detection and VDD1 missing detection, simplifying system design and diagnosis. The NSI1300D25-DSWWAR has a fixed gain of 8.2 and provides a differential analog input. Low misalignment and gain drift ensure accuracy over the entire temperature range. High common mode transient immunity (CMTI) ensures that the component can provide accurate and reliable measurement results even when working with high power switches, such as in motor control applications.
Product Features
• Up to 7500Vrms Insulation voltage
• ±250mV linear Input Voltage Range
• Fixed Gain: 8.2
• Low Offset Error and Drift: ±0.2mV (Max), 4μV/℃ (Max)
• Low Gain Error and Drift: ±0.3% (Max), ±50ppm/℃ (Max)
• Low Nonlinearity and Drift: ±0.03% (Max), ±1ppm/℃ (Typ)
• SNR: 86dB (Typ, BW=10kHz), 72dB (Typ, BW=100kHz)
• Wide bandwidth: 310kHz (Typ)
• High CMTI: 150kV/μs (Typ)
• System-Level Diagnostic Features: VDD1 monitoring; Input common-mode overvoltage detection
• Operation Temperature: -40℃ ~125℃

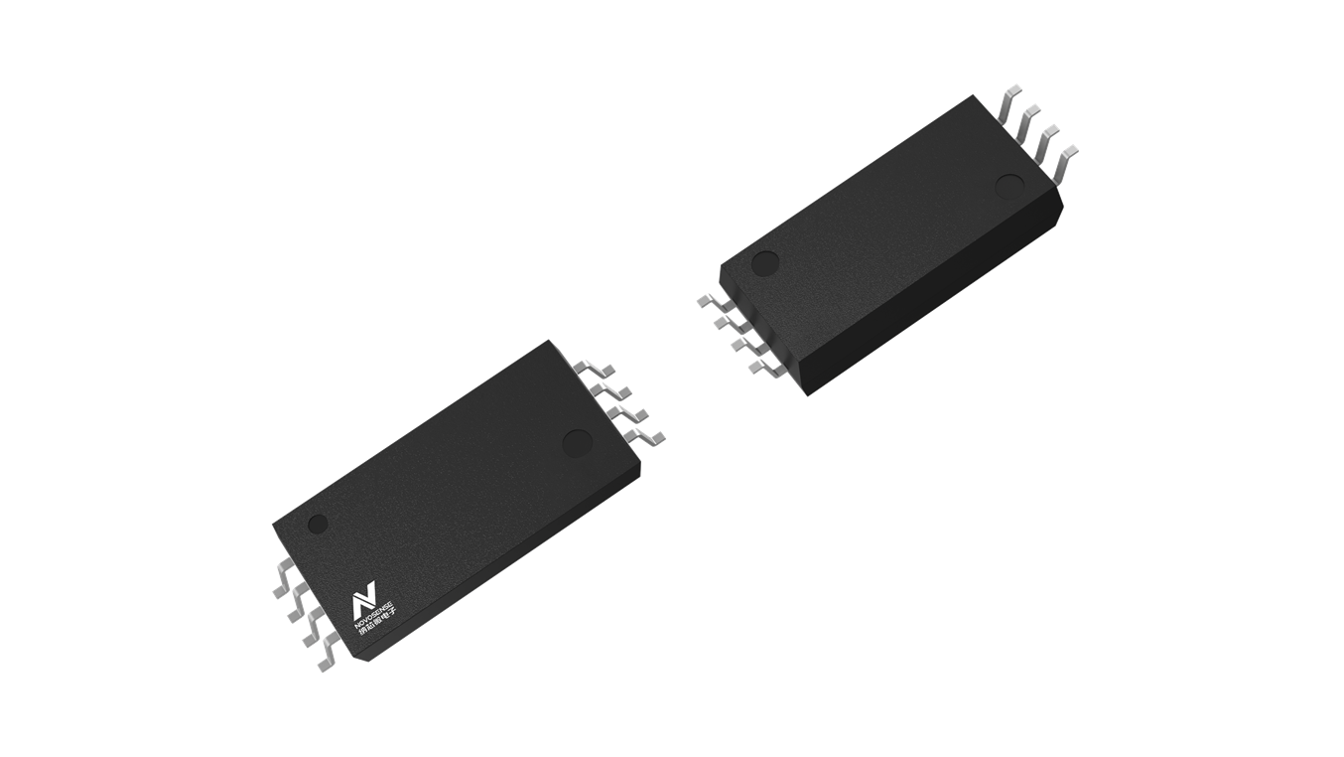

• RoHS-Compliant Packages: SOP8(600mil)
Safety Certificate
• UL recognition: up to 7500Vrms for 1 minute per UL1577
• CQC certification per GB4943.1
• CSA component notice 5A
• DIN VDE V 0884-17
Application
• Shunt current monitoring
• Motor Drives
• Uninterruptible Power Suppliers
• Solar Inverters
Functional Block Diagram
For more product information, please contact us.
